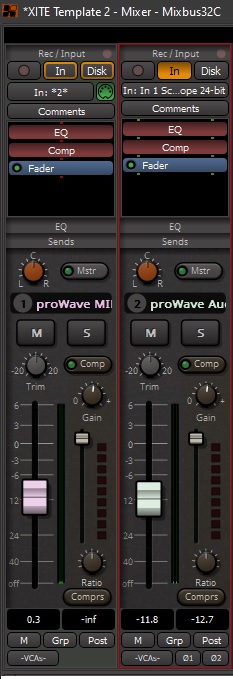

Note from the intro page (Scope and Mixbus Setup) that the Scope Project routed the proWave audio output to ASIO Dest Channels 1 and 2.

The proWave Audio signal appears on the right hand proWave Audio channel.

• For recording and playing of proWave the Rec/Input must be set to 'In' (orange) as shown.

• Prior to mixdown rendering to hard disk, the proWave must be recorded (from MIDI to Audio.

• For playback of the audio rendered proWave track, switch the Rec/Input OFF (grey).

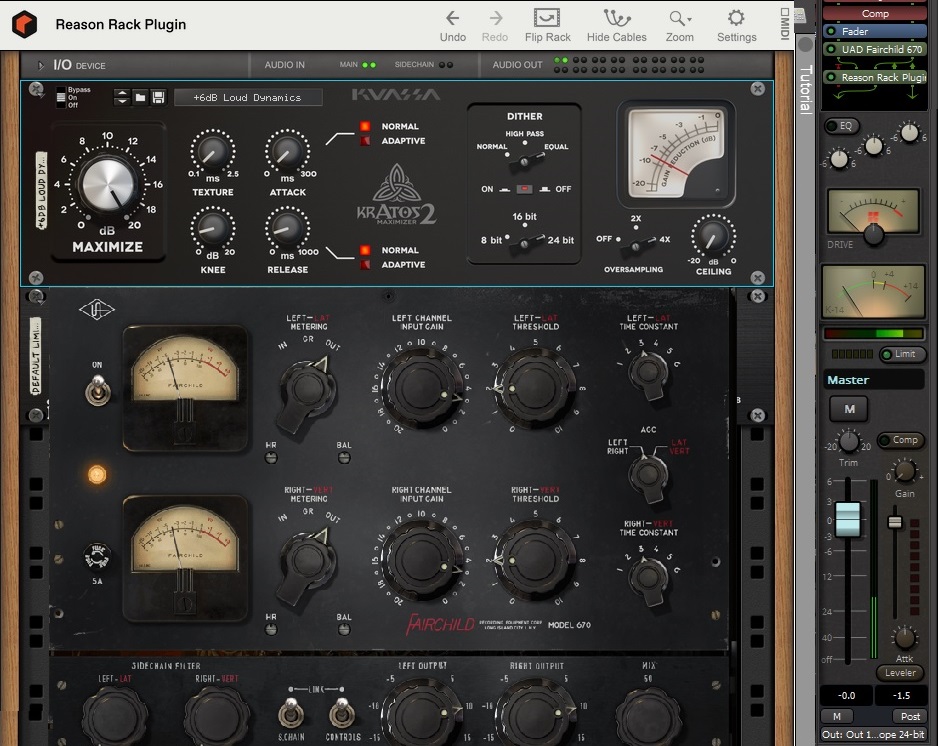

The picture on the right hand pane shows the master bus with inserts from the Reason Rack and Universal Audio.

• Firstly, the UAD Fairchild 670 is used as the master bus compressor to impart some valve warmth and punch.

• Secondly, the Kuassa Kratos 2 Mamimizer is used to increase the overall loudness of the mix.

This demonstrates the interoperability of Scope DSP, UAD DSP (VST2), Reason Rack Plugin (VST3) and the Harrison analog work flow and sound.

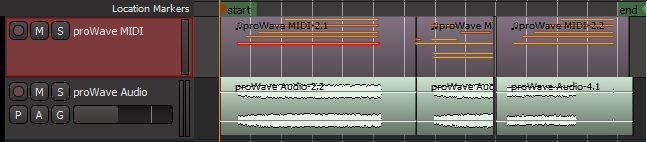

Left hand channel shows MIDI activity, while Right hand channel shows Audio Activity.
